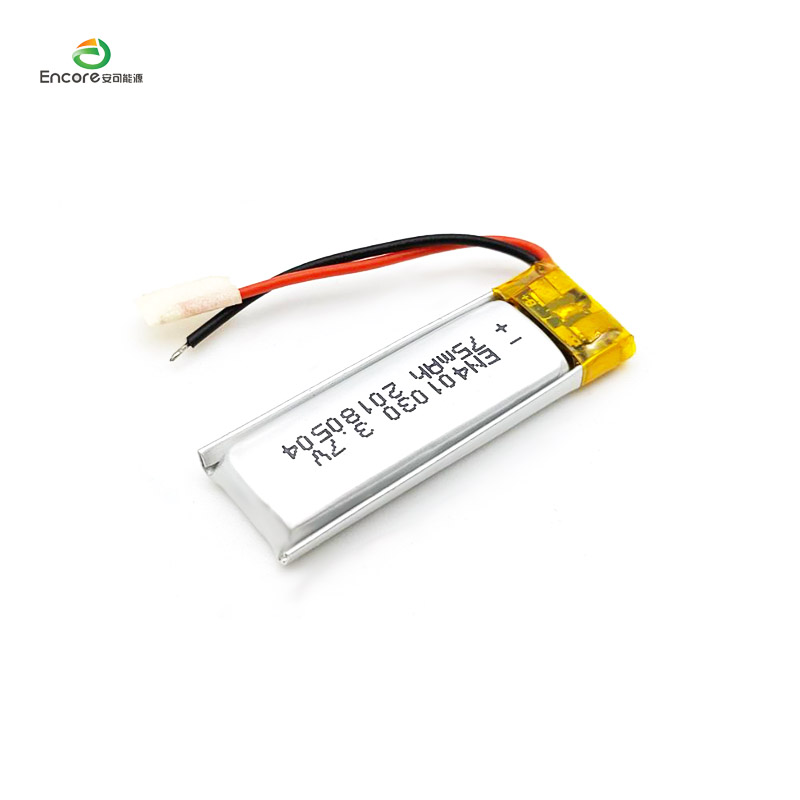

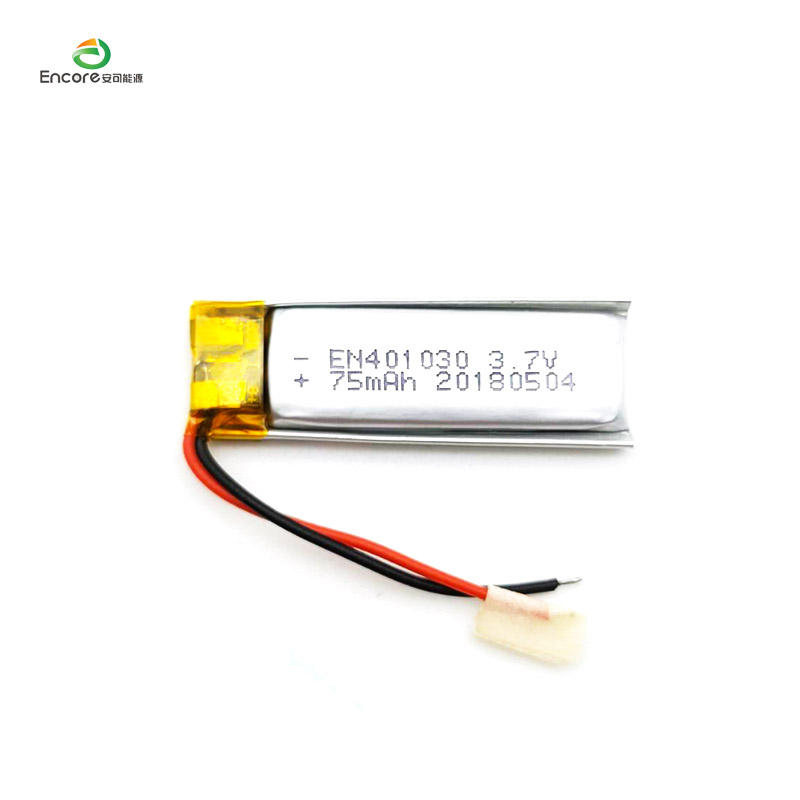

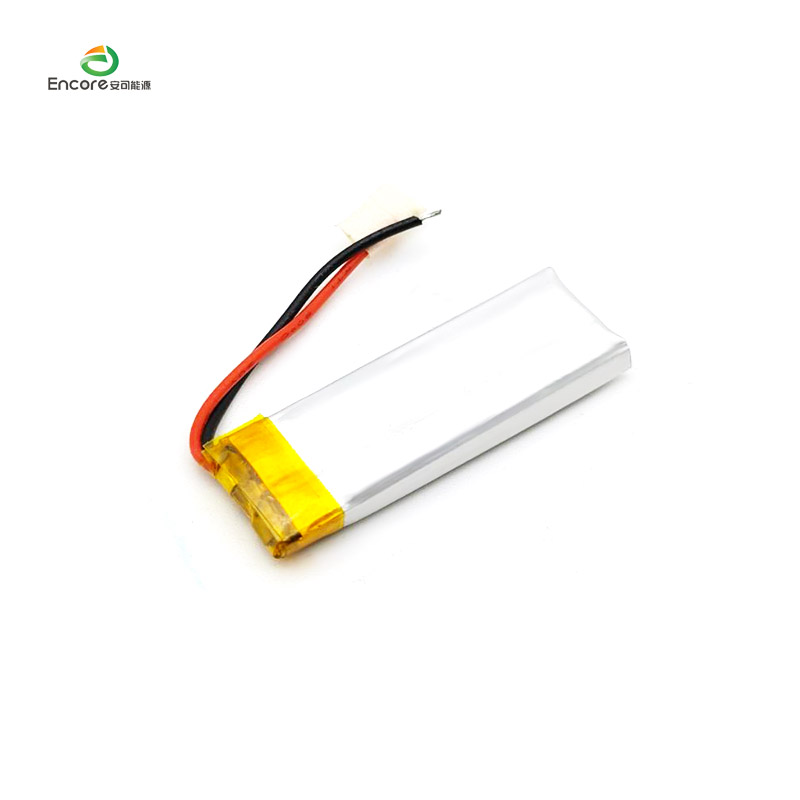

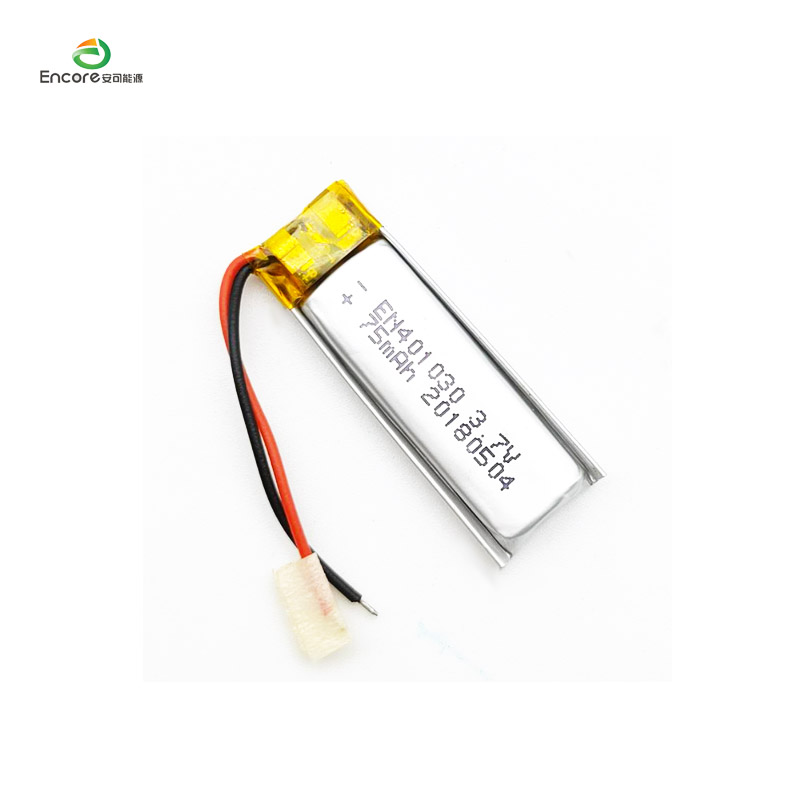

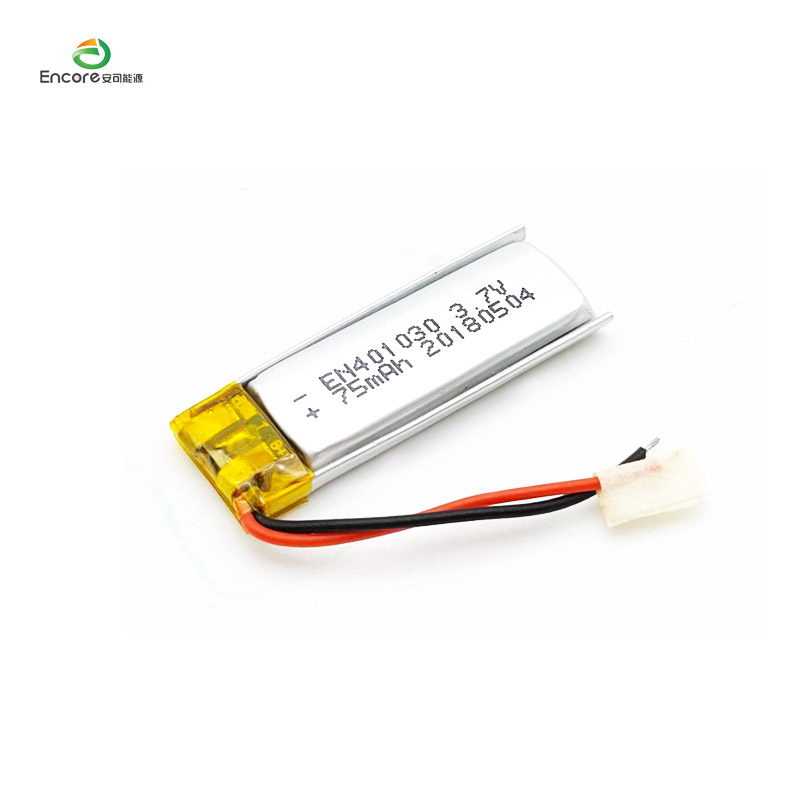

3.7v Toothbrush Lipo Pugna
  • 3.7v Toothbrush Lipo Pugna3.7v Toothbrush Lipo Pugna
  • 3.7v Toothbrush Lipo Pugna3.7v Toothbrush Lipo Pugna
  • 3.7v Toothbrush Lipo Pugna3.7v Toothbrush Lipo Pugna
  • 3.7v Toothbrush Lipo Pugna3.7v Toothbrush Lipo Pugna
  • 3.7v Toothbrush Lipo Pugna3.7v Toothbrush Lipo Pugna

3.7v Toothbrush Lipo Pugna

Pro artificio faciendo, volumus tibi dare qualitatem altam 3.7v Toothbrush Lipo Battery. Et offeremus tibi optimam post venditionem servitii et opportunam traditionem.

Model:401030

Mitte Inquisitionem

depictio producti
Pro artificio faciendo, volumus tibi dare qualitatem altam 3.7v Toothbrush Lipo Battery. Et offeremus tibi optimam post venditionem servitii et opportunam traditionem.

■ Features

Rechargeable Lithium-ion Polymer (LiPO)

nominatim facultatem: 90mAh

● Nominal intentione: 3.7V

● Standard præcipe: 6.5 horas

● Praecipe Temp.10-45℃

● Dimittite Temp.-10℃ ad 60℃

Per præcipe / officii sint tutelae

Brevis Circuit Praesidium

● Dimensiones: 4x10x30mm

● I-annus Warranty

● Cycle Vita: Plus CCC temporibus

–  Applications

● Late adhibentur in communicationibus, officinis, rebus oeconomicis, industriae accensis, instrumentis digitalibus, 3C electronicis et aliis campis consumptis.

■ Exemplar List

Exemplar Number Capacity nominal Nominal Voltage Latin præcipe Tempus Crimen Press intentione
EN401030 90mAh 3.7V 6.5 horas 4.2V

■ Technical Data

Rated Capacity 90mAh
Capacitas minimum 90mAh
Nominal Voltage 3.7V
Crimen Press intentione 4.2V
Dimittite abscise intentione 3.0V
Finis-of-crimen Current 0.02C
Vexillum crimen Praecipe cum 0.2C (18mA) usque ad strictam intentionem, incipe limitatam intentionem usque ad finem currentis criminis.
Standard Discharge Usura 0.2C (18mA) constanti currenti missione ad solvendum abscise intentione.
Maximum continuum præcipe Current 1C(90mA)
Maxime continua missione Current 1C(90mA)
Maximum Pulsus Discahrge Current 1C
Temperature Range operating Praecipe 0~45℃
Dimittite -10~60℃
Repono Temperature Range -10 ~ 45â, minus quam 1month
-10 ~ 35℃ minus quam 6month
Operating et at Umor Range LXXV% RH vel minus
Pondus Proxime 2.3g
Open Circuit Voltage 3.75V-3.95V
Internum Impedimentum Una Cellula: ≤180Ω
Pugna Pack: ≤280Ω

■Mechanicum Diagram

■ PCM Parameter

Item Conditio Specification
input intentione input intentione B + ad B- -0.3~+12V
onerem Deprehensio voltage 4.280±0.080V
Dimittis voltage 4.080±0.100V
Mora deprehendatur tempore 0.96~1.40S
Per missionem Deprehensio voltage 3.000±0.100V
Dimittis voltage 3.000±0.100V
Mora deprehendatur tempore 115.00~ 173.00 ms
Per missionem current Plus current 1.3~4.0A
Mora tempus 7.2~11.0ms
Praesidium inopia Brevis mora temporis deprehendatur 220~380us
Dimittere Conditions Disperdite onus
Normalis vena consummatio Normalis vena consummatio PCM Max 7.00 uA
0V patina licet 0V patina Ita
IR resistentia IR of PCM ≤65.00 mΩ
NTC / resistentia / /
Magnitudinem finalem PCM PCM ultima longitudo 6.5±0.15mm
PCM ultima latitudo 3.6±0.10mm
PCM finalis crassitudo Max2.40mm

■De Company

"Dongguan Encore Energy Co.,LTD, anno 2016 constat, capitalia relatus est RMB10000000, cum operariis 200; Lorem summus techenterprise in R&D, productio, et venalicium pro pugna amicabili lithium-ion;

Nostra producta possidet altilium Lithium-ion polymer, Lithium cylindricum altilium, Lithium-ion phosphate altilium et relatedlithium polymerorum altilium et sarcinam machinam. Energy Energy provectae internationalis administrationis experientiam plene hausit et feliciter ISO9001:2008 qualitatem systematis certificationis ab instauratione societatis sumpsit. Omnes producti requisitis RoHS obtemperant ac plerique praeterierunt UL, CE, UN38.3, KC, FCC certificaciones. Nostra missio: “focus in elit eget, auctorum proventus supplere cum servitio€, dedicatum assiduis laboribus ut diuturnum tempus clientium commoda curaret".

■ Certification

■ UL1642 Certified altilium size:

No Cylindrus/Capacity Magnitudo (D*L)mm Certification Dicta
1 302020-80mAh 3.0*20.0*20.8 UL1642
2 302530-180mAh 3.0*25.0*30.0 UL1642
3 35121-35mAh 3.6* 12.0*13.5 UL1642
4 353035-350mAh 3.5*30.0*35.0 UL1642
5 372135-250mAh 3.7*21.0*35.0 UL1642
6 381424-80mAh 3.8*14.0*22.0 UL1642 5C Fast præcipe
7 401020-50mAh 4.0*10.0*20.0 UL1642
8 401030-90mAh 4.0*10.0*30.0 UL1642
9 401220-70mAh 4.0* 12.5*20.0 UL1642
10 401230-125mAh 4.0* 12.0*30.0 UL1642
11 402030-200mAh 4.0*20.0*29.5 UL1642 Normalis et 15C High Rate
12 410929-80mAh 4.1*9.0*29.0 UL1642
13 421217-50mAh 4.2* 12.0*17.0 UL1642
14 432126-190mAh 4.3*21.0*26.0 UL1642
15 451220-70mAh 4.5* 12.0*20.0 UL1642
16 455080-2100mAh 4.5*50.0*80.0 UL1642
17 462558-720mAh 4.6*25.0*58.0 UL1642
18 465782-3450mAh 4.6*57.0*82.0 UL1642 4.35V
19 500930-90mAh 5.0*9.0*28.0 UL1642 5C Fast præcipe
20 501015-50mAh 5.0*10.0*15.0 UL1642
21 501225-110mAh 5.0*12.0*25.0 UL1642
22 501227-110mAh 5.0*12.0*25.0 UL1642 5C Fast præcipe
23 501447-280mAh 5.2* 14.0*47.5 UL1642 3A Dimittite
24 502030-250mAh 5.0*20.0*30.0 UL1642
25 502530-300mAh 5.0*25.0*30.0 UL1642
26 502540-500mAh 5.0*25.0*38.5 UL1642
27 503035-500mAh 5.0*30.0*35.5 UL1642
28 503040-550mAh 5.0*30.0*40.0 UL1642
29 504040-480mAh 5.0*40.0*38.0 UL1642
30 504050-1000mAh 5.0*40.0*50.0 UL1642
31 5267105-5000mAh 5.2*67.0* 105.0 UL1642
32 551245-220mAh 5.5* 12.0*45.0 UL1642
33 552530-410mAh 5.5*25.0*30.5 UL1642
34 553825-500mAh 5.5*38.0*25.0 UL1642
35 554270-1900mAh 5.5*42.0*70.0 UL1642
36 581038-180mAh 5.8*10.0*38.0 UL1642
37 582235-380mAh 6.0*22.5*37.5 UL1642
38 582751-825mAh 5.8*27.0*51.0 UL1642
39 601818-140mAh 6.0* 18.0* 18.0 UL1642
40 602025-250mAh 6.0*20.0*25.5 UL1642
41 602030-300mAh 6.0*20.0*30.5 UL1642
42 602040-450mAh 6.0*20.0*39.5 UL1642
43 602240-500mAh 6.0*22.0*40.5 UL1642
44 603048-850mAh 6.0*30.0*48.0 UL1642
45 603759-1400mAh 6.0*37.0*59.0 UL1642
46 651448-450mAh 6.5*14.0*48.0 UL1642
47 653030-500mAh 6.5*30.0*28.0 UL1642
48 653040-800mAh 6.5*30.0*40.5 UL1642
49 701250-380mAh 7.0*12.0*50.0 UL1642
50 701340-300mAh 7.0*13.0*40.0 UL1642
51 703351-1100mAh 7.0*33.0*51.0 UL1642
52 705070-3000mAh 7.0*50.0*70.0 UL1642
53 733960-1800mAh 7.3*39.0*60.0 UL1642
54 782551-1000mAh 7.8*25.0*51.0 UL1642
55 783048-1150mAh 7.8*30.0*48.0 UL1642
56 801437-370mAh 8.1*14.0*37.5 UL1642 3A Dimittite
57 801534-350mAh 8.1*15.5*34.5 UL1642 3A Dimittite
58 802035-480mAh 8.0*20.0*33.0 UL1642
59 802040-600mAH 8.0*20.0*40.0 UL1642
60 802230-400mAh 8.0*22.0*30.0 UL1642
61 802530-500mAh 8.0*25.0*30.0 UL1642
62 803860-2000mAh 8.0*38.0*60.0 UL1642
63 822129-400mAh 8.2*21.0*29.0 UL1642
64 833338-1280mAh 8.3*33.0*38.0 UL1642
65 102020-300mAh 10.0*20.0*20.5 UL1642
66 103450-1800mAh 10.0*34.0*50.0 UL1642
Pugna Cylindrica
1 50300-45mAh 5.5* 31.0 UL1642
2 65180-40mAh 6.5* 18.5 UL1642 4C Dimittite
3 60270-55mAh 6.0*27.0 UL1642
4 72530-200mAh 7.2*53.0 UL1642
5 75100-20mAh 7.5*10.0 UL1642
6 75300-100mAh 7.5*30.5 UL1642 3A Dimittite
7 75350-130mAh 7.5*35.0 UL1642
8 08120-50mAh 8.3*12.5 UL1642
9 08160-60mAh 8.3*16.5 UL1642
10 08300-120mAh 8.5*30.0 UL1642
11 08400-180mAh 8.5*40.5 UL1642 1.2A Dimittite
12 08500-260mAh 8.3*50.5 UL1642 1.5A Dimittite
13 08570-280mAh 8.5*57.5 UL1642 3A Dimittite
14 09130-65mAh 9.5*13.5 UL1642
15 09260-180mAh 9.5*26.5 UL1642
16 10100-60mAh 10.5*11.0 UL1642 Normal,3C Fast præcipe
17 10150-80mAh 10.5*15.0 UL1642
18 10350-300mAh 10.0*35.0 UL1642
19 10380-300mAh 10.0*38.0 UL1642
20 10400-280mAh 9.8*41.0 UL1642 3A Dimittite
21 10440-330mAh 10.0*44.0 UL1642
22 10540-50mAh 10.0*54.0 UL1642
23 1254-50mAh 12.0*54.0 UL1642
24 14540-85mAh 14.0*54.0 UL1642
25 13250-400mAh 13.0*25.0 UL1642
26 13300-500mAh 13.0*30.0 UL1642
27 13350-550mAh 13.0*35.0 UL1642
28 13400-550mAh 13.0*40.0 UL1642
29 13420-750mAh 13.0*42.0 UL1642
30 13450-650mAh 13.0*45.0 UL1642
31 14500-800mAh 14.0*50.0 UL1642
32 15380-680mAh 15.0*38.0 UL1642
33 16350-650mAh 16.0*35.0 UL1642
34 17350-850mAh 17.0*35.0 UL1642
35 18350-800mAh 18.0*35.0 UL1642

■stipare et Shipment

1. Latin export car packaging vel Custom facta Package

2. Modus onerariis:

Expresse UPS/DHL/FEDEX/TNT (Capit 3-25 dies operantes ut perveniant).

Per aerem navis (It takes about week to come I)

Per mare sit amet (It takes about 1 month to come)

3. Partus 3-25 dies operantes post solutionem et confirmationem stipare.

■Admonitiones

1. Culpae observandi sequentes cautiones inveniantur in lacus, explosione vel igne.

- Altilium in aqua noli immergere nec madefacere sinis.

- Pugna prope fontes caloris, sicut ignis vel calefacientis, non utuntur vel reponunt.

- Noli e converso positivo (+) et negativo - terminativo.

- Noli coniungi pilae directe ad exitus parietum vel carrum cigarette basibus levioribus.

- Ne pilam in ignem pones vel calorem directum ei applica.

- Noli breve spatium pilae iungendo filis vel alia obiecta metalla ad positivas (+) et negativas terminales.

- Noli ponere pilam in vase Proin clibano vel pressurized.

- Pugna in compositione cum batteries primariis (ut gravida alcalina) vel gravida diversae capacitatis, generis vel notae non utuntur.

- Pugna non uteris, si odorem profert, calorem generat, vel decoloratur vel deformatur, vel quovis modo abnormis apparet.

Si pila in usu est vel recharged, eam a fabrica vel patina statim remove et usum omittas.

- Pugnam clavo vel alio acuto objecto ne transfige, malleo aperi, vel ei gradum.

- Noli ullo modo pilae disassemble conari.

- Serva gravida extra liberos. Si puer aliquo modo pilam devorat, medicinae operam statim quaere.

- Si pila pinum et electrolyticum in oculis tuis obvenit, ea ne fricabis. ablue eos aqua munda et protinus operam medicinae quaerunt.

Si relictum est, electrolytici injuriam oculus facere potest.

- Mensurae solitariae requiruntur inter altilium (nuda Al layer ad latus et top obsignatio) et PCB, ac etiam inter altilium et apparatum electricum;

praesertim ne Al- iacum in ffoyle contactum ad cathode vel anode (incluso apparatu electrico) vitet, aliter hoc facere potest ultrices vel tumorem altilium.
