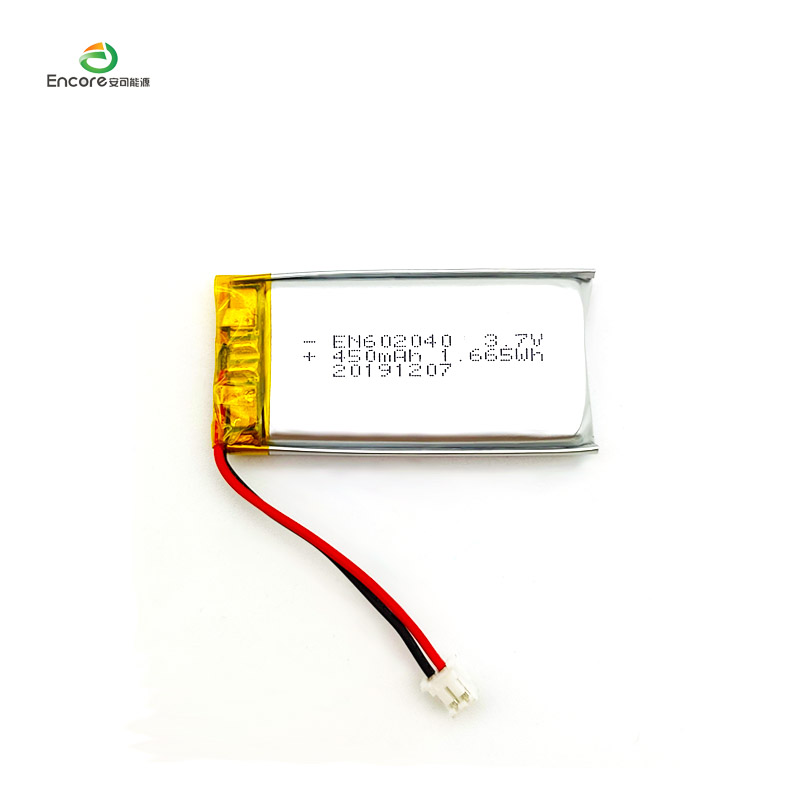

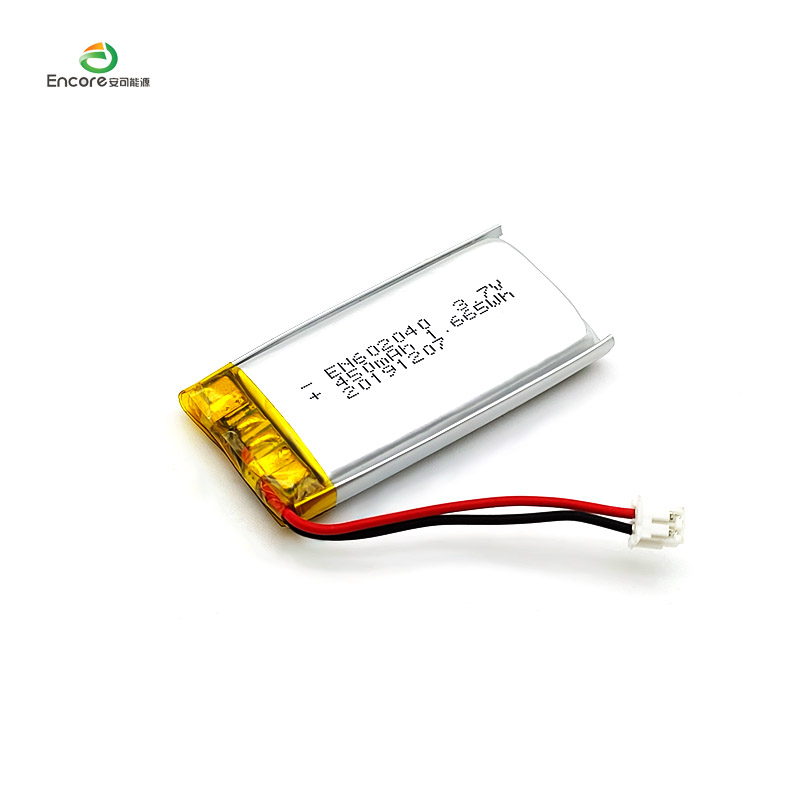

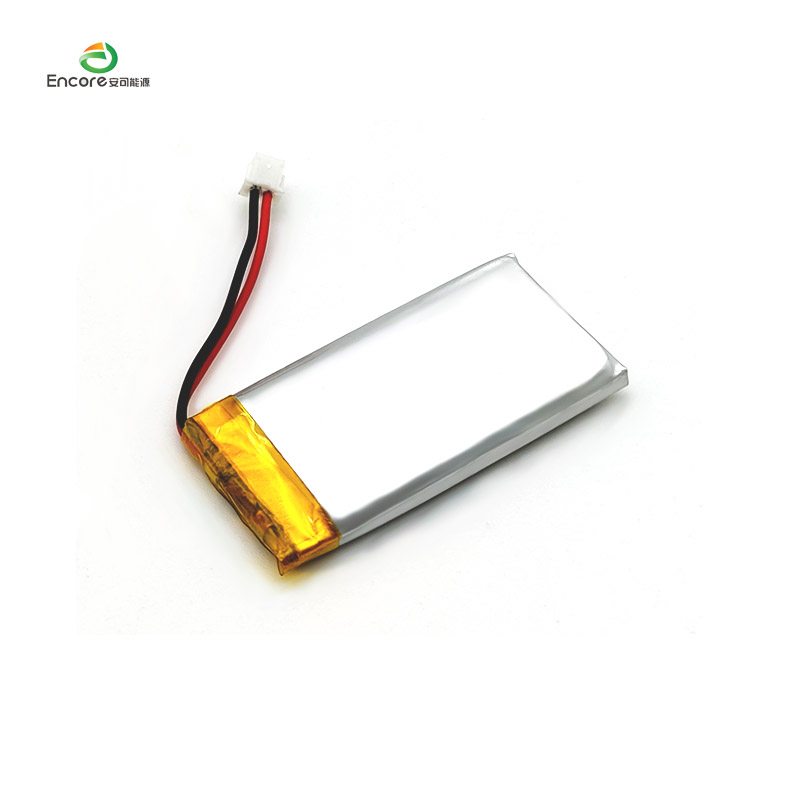

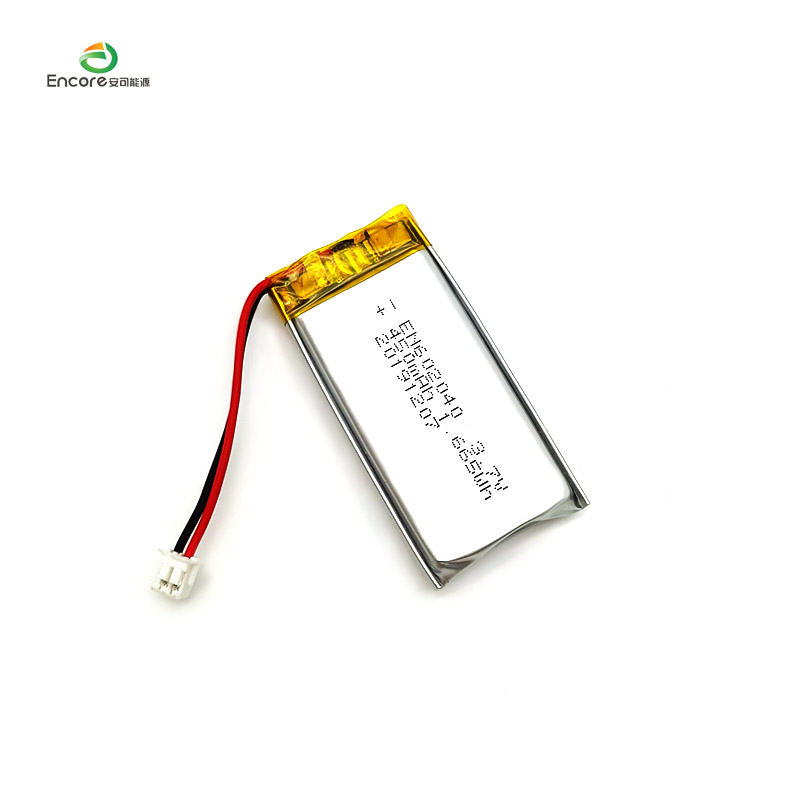

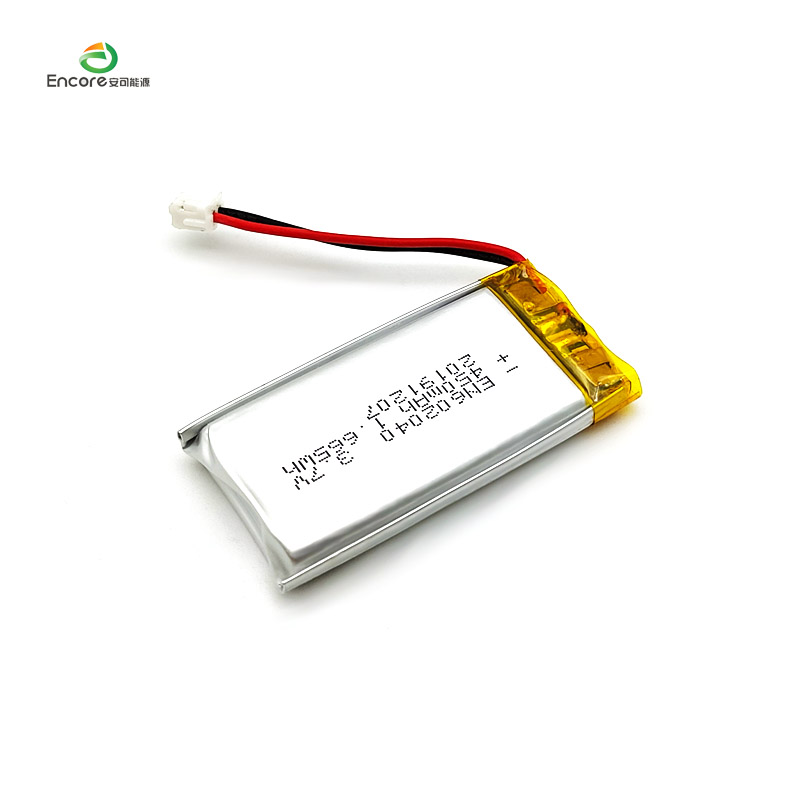

Sequens est introductio 602040 3.7v 450mah Li Polymer Pugna, sperans te melius intelligere 602040 3.7v 450mah Li Polymer Pugna. Exspectate clientes novos et veteres pergere nobiscum cooperari ut melius futurum creant!
nominatim facultatem: 450mAh
â Nominal intentione: 3.7V
â Standard præcipe: 6.5 horas
â Praecipe Temp.10-45â
â Dimittite Temp.-10â ad 60â
Per præcipe / officii sint tutelae
Brevis Circuit Praesidium
â Dimensiones: 6x20x40mm
â I-annus Warranty
â Cycle Vita: Plus CCC temporibus
â Late adhibentur in communicationibus, officinis, rebus oeconomicis, industriae accensis, instrumentis digitalibus, 3C electronicis et aliis campis consumptis.
Exemplar Number | Capacity nominal | Nominal Voltage | Latin præcipe Tempus | Crimen Press intentione |
EN602040 | 450mAh | 3.7V | 6.5 horas | 4.2V |
Rated Capacity | 450mAh | ||||||||
Capacitas minimum | 440mAh | ||||||||
Nominal Voltage | 3.7V | ||||||||
Crimen Press intentione | 4.2V | ||||||||
Dimittite abscise intentione | 3.0V | ||||||||
Finis-of-crimen Current | 0.02C | ||||||||
Vexillum crimen | Praecipe cum 0.2C(90mA) usque ad strictam intentionem, incipe limitatam intentionem usque ad finem currentis criminis. | ||||||||
Standard Discharge | Usura 0.2C(90mA) constanti currenti missione ad solvendum abscise intentione. | ||||||||
Maximum continuum præcipe Current | 1C (450mA) | ||||||||
Maxime continua missione Current | 1C (450mA) | ||||||||
Maximum Pulsus Discahrge Current | 1C | ||||||||
Temperature Range operating | Praecipe 0~45â Dimittite -10~60â |
||||||||
Repono Temperature Range | -10 ~ 45â, minus quam 1month -10 ~ 35â minus quam 6month |
||||||||
Operating et at Umor Range | LXXV% RH vel minus | ||||||||
Pondus | Proxime 8.5g | ||||||||
Open Circuit Voltage | 3.75V-3.95V | ||||||||
Internum Impedimentum | Una Cellula: â¤180Ω Pugna Pack: â¤280Ω |
Item | Conditio | Specification | |||||||
input intentione | input intentione B + ad B- | -0.3ï½+12V | |||||||
onerem | Deprehensio voltage | 4.280±0.025V | |||||||
Dimittis voltage | 4.080±0.025V | ||||||||
Mora deprehendatur tempore | 0.96~1.40S | ||||||||
Per missionem | Deprehensio voltage | 3.000±0.050V | |||||||
Dimittis voltage | 3.000±0.050V | ||||||||
Mora deprehendatur tempore | 115.00~ 173.00 ms | ||||||||
Per missionem current | Plus current | 1.3ï½5.50A | |||||||
Mora tempus | 7.2ï½11.00ms | ||||||||
Praesidium inopia | Brevis mora temporis deprehendatur | 220ï½380us | |||||||
Dimittere Conditions | Disperdite onus | ||||||||
Normalis vena consummatio | Normalis vena consummatio PCM | Max 7.00 uA | |||||||
0V patina | licet 0V patina | Ita | |||||||
IR resistentia | IR of PCM | â¤65.00 mΩ | |||||||
NTC / resistentia | / | / | |||||||
Magnitudinem finalem PCM | PCM ultima longitudo | 16.0±0.15mm | |||||||
PCM ultima latitudo | 3.6±0.10mm | ||||||||
PCM finalis crassitudo | Max2.40mm |
"Dongguan Encore Energy Co.,LTD, anno 2016 constat, capitalia relatus est RMB10000000, cum operariis 200; Lorem summus techenterprise in R&D, productio, et venalicium pro pugna amicabili lithium-ion;
Nostra producta possidet altilium Lithium-ion polymer, Lithium cylindricum altilium, Lithium-ion phosphate altilium et relatedlithium polymerorum altilium et sarcinam machinam. Energy Energy provectae internationalis administrationis experientiam plene hausit et feliciter ISO9001:2008 qualitatem systematis certificationis ab instauratione societatis sumpsit. Omnes producti requisitis RoHS obtemperant ac plerique praeterierunt UL, CE, UN38.3, KC, FCC certificaciones. Nostra missio: âfocus in elit eget, auctorum proventus supplere cum servitio, dedicatum assiduis laboribus ut diuturnum tempus clientium commoda curaret".
No | Cylindrus/Capacity | Magnitudo (D*L)mm | Certification | Dicta | |||||
1 | 302020-80mAh | 3.0*20.0*20.8 | UL1642 | ||||||
2 | 302530-180mAh | 3.0*25.0*30.0 | UL1642 | ||||||
3 | 35121-35mAh | 3.6* 12.0*13.5 | UL1642 | ||||||
4 | 353035-350mAh | 3.5*30.0*35.0 | UL1642 | ||||||
5 | 372135-250mAh | 3.7*21.0*35.0 | UL1642 | ||||||
6 | 381424-80mAh | 3.8*14.0*22.0 | UL1642 | 5C Fast præcipe | |||||
7 | 401020-50mAh | 4.0*10.0*20.0 | UL1642 | ||||||
8 | 401030-90mAh | 4.0*10.0*30.0 | UL1642 | ||||||
9 | 401220-70mAh | 4.0* 12.5*20.0 | UL1642 | ||||||
10 | 401230-125mAh | 4.0* 12.0*30.0 | UL1642 | ||||||
11 | 402030-200mAh | 4.0*20.0*29.5 | UL1642 | Normalis et 15C High Rate | |||||
12 | 410929-80mAh | 4.1*9.0*29.0 | UL1642 | ||||||
13 | 421217-50mAh | 4.2* 12.0*17.0 | UL1642 | ||||||
14 | 432126-190mAh | 4.3*21.0*26.0 | UL1642 | ||||||
15 | 451220-70mAh | 4.5* 12.0*20.0 | UL1642 | ||||||
16 | 455080-2100mAh | 4.5*50.0*80.0 | UL1642 | ||||||
17 | 462558-720mAh | 4.6*25.0*58.0 | UL1642 | ||||||
18 | 465782-3450mAh | 4.6*57.0*82.0 | UL1642 | 4.35V | |||||
19 | 500930-90mAh | 5.0*9.0*28.0 | UL1642 | 5C Fast præcipe | |||||
20 | 501015-50mAh | 5.0*10.0*15.0 | UL1642 | ||||||
21 | 501225-110mAh | 5.0*12.0*25.0 | UL1642 | ||||||
22 | 501227-110mAh | 5.0*12.0*25.0 | UL1642 | 5C Fast præcipe | |||||
23 | 501447-280mAh | 5.2* 14.0*47.5 | UL1642 | 3A Dimittite | |||||
24 | 502030-250mAh | 5.0*20.0*30.0 | UL1642 | ||||||
25 | 502530-300mAh | 5.0*25.0*30.0 | UL1642 | ||||||
26 | 502540-500mAh | 5.0*25.0*38.5 | UL1642 | ||||||
27 | 503035-500mAh | 5.0*30.0*35.5 | UL1642 | ||||||
28 | 503040-550mAh | 5.0*30.0*40.0 | UL1642 | ||||||
29 | 504040-480mAh | 5.0*40.0*38.0 | UL1642 | ||||||
30 | 504050-1000mAh | 5.0*40.0*50.0 | UL1642 | ||||||
31 | 5267105-5000mAh | 5.2*67.0* 105.0 | UL1642 | ||||||
32 | 551245-220mAh | 5.5* 12.0*45.0 | UL1642 | ||||||
33 | 552530-410mAh | 5.5*25.0*30.5 | UL1642 | ||||||
34 | 553825-500mAh | 5.5*38.0*25.0 | UL1642 | ||||||
35 | 554270-1900mAh | 5.5*42.0*70.0 | UL1642 | ||||||
36 | 581038-180mAh | 5.8*10.0*38.0 | UL1642 | ||||||
37 | 582235-380mAh | 6.0*22.5*37.5 | UL1642 | ||||||
38 | 582751-825mAh | 5.8*27.0*51.0 | UL1642 | ||||||
39 | 601818-140mAh | 6.0* 18.0* 18.0 | UL1642 | ||||||
40 | 602025-250mAh | 6.0*20.0*25.5 | UL1642 | ||||||
41 | 602030-300mAh | 6.0*20.0*30.5 | UL1642 | ||||||
42 | 602040-450mAh | 6.0*20.0*39.5 | UL1642 | ||||||
43 | 602240-500mAh | 6.0*22.0*40.5 | UL1642 | ||||||
44 | 603048-850mAh | 6.0*30.0*48.0 | UL1642 | ||||||
45 | 603759-1400mAh | 6.0*37.0*59.0 | UL1642 | ||||||
46 | 651448-450mAh | 6.5*14.0*48.0 | UL1642 | ||||||
47 | 653030-500mAh | 6.5*30.0*28.0 | UL1642 | ||||||
48 | 653040-800mAh | 6.5*30.0*40.5 | UL1642 | ||||||
49 | 701250-380mAh | 7.0*12.0*50.0 | UL1642 | ||||||
50 | 701340-300mAh | 7.0*13.0*40.0 | UL1642 | ||||||
51 | 703351-1100mAh | 7.0*33.0*51.0 | UL1642 | ||||||
52 | 705070-3000mAh | 7.0*50.0*70.0 | UL1642 | ||||||
53 | 733960-1800mAh | 7.3*39.0*60.0 | UL1642 | ||||||
54 | 782551-1000mAh | 7.8*25.0*51.0 | UL1642 | ||||||
55 | 783048-1150mAh | 7.8*30.0*48.0 | UL1642 | ||||||
56 | 801437-370mAh | 8.1*14.0*37.5 | UL1642 | 3A Dimittite | |||||
57 | 801534-350mAh | 8.1*15.5*34.5 | UL1642 | 3A Dimittite | |||||
58 | 802035-480mAh | 8.0*20.0*33.0 | UL1642 | ||||||
59 | 802040-600mAH | 8.0*20.0*40.0 | UL1642 | ||||||
60 | 802230-400mAh | 8.0*22.0*30.0 | UL1642 | ||||||
61 | 802530-500mAh | 8.0*25.0*30.0 | UL1642 | ||||||
62 | 803860-2000mAh | 8.0*38.0*60.0 | UL1642 | ||||||
63 | 822129-400mAh | 8.2*21.0*29.0 | UL1642 | ||||||
64 | 833338-1280mAh | 8.3*33.0*38.0 | UL1642 | ||||||
65 | 102020-300mAh | 10.0*20.0*20.5 | UL1642 | ||||||
66 | 103450-1800mAh | 10.0*34.0*50.0 | UL1642 |
Pugna Cylindrica | |||||||||
1 | 50300-45mAh | 5.5* 31.0 | UL1642 | ||||||
2 | 65180-40mAh | 6.5* 18.5 | UL1642 | 4C Dimittite | |||||
3 | 60270-55mAh | 6.0*27.0 | UL1642 | ||||||
4 | 72530-200mAh | 7.2*53.0 | UL1642 | ||||||
5 | 75100-20mAh | 7.5*10.0 | UL1642 | ||||||
6 | 75300-100mAh | 7.5*30.5 | UL1642 | 3A Dimittite | |||||
7 | 75350-130mAh | 7.5*35.0 | UL1642 | ||||||
8 | 08120-50mAh | 8.3*12.5 | UL1642 | ||||||
9 | 08160-60mAh | 8.3*16.5 | UL1642 | ||||||
10 | 08300-120mAh | 8.5*30.0 | UL1642 | ||||||
11 | 08400-180mAh | 8.5*40.5 | UL1642 | 1.2A Dimittite | |||||
12 | 08500-260mAh | 8.3*50.5 | UL1642 | 1.5A Dimittite | |||||
13 | 08570-280mAh | 8.5*57.5 | UL1642 | 3A Dimittite | |||||
14 | 09130-65mAh | 9.5*13.5 | UL1642 | ||||||
15 | 09260-180mAh | 9.5*26.5 | UL1642 | ||||||
16 | 10100-60mAh | 10.5*11.0 | UL1642 | Normalï¼3C Fast præcipe | |||||
17 | 10150-80mAh | 10.5*15.0 | UL1642 | ||||||
18 | 10350-300mAh | 10.0*35.0 | UL1642 | ||||||
19 | 10380-300mAh | 10.0*38.0 | UL1642 | ||||||
20 | 10400-280mAh | 9.8*41.0 | UL1642 | 3A Dimittite | |||||
21 | 10440-330mAh | 10.0*44.0 | UL1642 | ||||||
22 | 10540-50mAh | 10.0*54.0 | UL1642 | ||||||
23 | 1254-50mAh | 12.0*54.0 | UL1642 | ||||||
24 | 14540-85mAh | 14.0*54.0 | UL1642 | ||||||
25 | 13250-400mAh | 13.0*25.0 | UL1642 | ||||||
26 | 13300-500mAh | 13.0*30.0 | UL1642 | ||||||
27 | 13350-550mAh | 13.0*35.0 | UL1642 | ||||||
28 | 13400-550mAh | 13.0*40.0 | UL1642 | ||||||
29 | 13420-750mAh | 13.0*42.0 | UL1642 | ||||||
30 | 13450-650mAh | 13.0*45.0 | UL1642 | ||||||
31 | 14500-800mAh | 14.0*50.0 | UL1642 | ||||||
32 | 15380-680mAh | 15.0*38.0 | UL1642 | ||||||
33 | 16350-650mAh | 16.0*35.0 | UL1642 | ||||||
34 | 17350-850mAh | 17.0*35.0 | UL1642 | ||||||
35 | 18350-800mAh | 18.0*35.0 | UL1642 |
1. Latin export car packaging vel Custom facta Package
2. Modus onerariis:
Expresse UPS/DHL/FEDEX/TNT (Capit 3-25 dies operantes ut perveniant).
Per aerem navis (It takes about week to come I)
Per mare sit amet (It takes about 1 month to come)
3. Partus 3-25 dies operantes post solutionem et confirmationem stipare.
1. Culpae observandi sequentes cautiones inveniantur in lacus, explosione vel igne.
- Altilium in aqua noli immergere nec madefacere sinis.
- Pugna prope fontes caloris, sicut ignis vel calefacientis, non utuntur vel reponunt.
- Noli e contrario positiva (+) et negativa (-) terminalia.
- Noli coniungi pilae directe ad exitus parietum vel carrum cigarette basibus levioribus.
- Ne pilam in ignem pones vel calorem directum ei applica.
- Noli breve spatium pilae iungendo filis vel alia obiecta metalla ad positivas (+) et negativas terminales.
- Noli ponere pilam in vase Proin clibano vel pressurized.
- Pugna in compositione cum batteries primariis (ut gravida alcalina) vel gravida diversae capacitatis, generis vel notae non utuntur.
- Pugna non uteris, si odorem profert, calorem generat, vel decoloratur vel deformatur, vel quovis modo abnormis apparet.
Si pila in usu est vel recharged, eam a fabrica vel patina statim remove et usum omittas.
- Pugnam clavo vel alio acuto objecto ne transfige, malleo aperi, vel ei gradum.
- Noli ullo modo pilae disassemble conari.
- Serva gravida extra liberos. Si puer aliquo modo pilam devorat, medicinae operam statim quaere.
- Si pila pinum et electrolyticum in oculis tuis obvenit, ea ne fricabis. ablue eos aqua munda et protinus operam medicinae quaerunt.
Si relictum est, electrolytici injuriam oculus facere potest.
- Mensurae solitariae requiruntur inter altilium (nuda Al layer ad latus et top obsignatio) et PCB, ac etiam inter altilium et apparatum electricum;
praesertim ne Al- iacum in ffoyle contactum ad cathode vel anode (incluso apparatu electrico) vitet, aliter hoc facere potest ultrices vel tumorem altilium.
